Mac配置树莓派zero usb上网

中文英文韩语日语

sd卡上config.txt中末行添加

dtoverlay=dwc2

cmdline.txt文件中rootwait后添加

modules-load=dwc2,g_ether

登录树莓派

ssh root@ssh pi@raspberrypi.local

Linux raspberrypi 4.14.34+ #1110 Mon Apr 16 14:51:42 BST 2018 armv6l

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Mon Jun 25 08:42:47 2018 from *****%usb0

SSH is enabled and the default password for the 'pi' user has not been changed.
This is a security risk - please login as the 'pi' user and type 'passwd' to set a new password.

pi@raspberrypi:~ $

初次登录密码是

raspberry

现在我们来配置网卡用静态ip使得树莓派通过usb共享电脑端的网络
(类似于使用USB网卡来共享网络)首先我们来为树莓派设置网络参数：

vi /etc/network/interfaces末行添加

allow-hotplug usb0
iface usb0 inet static
        address 192.168.2.2
        netmask 255.255.255.0
        network 192.168.2.0
        broadcast 192.168.2.255
        gateway 192.168.2.1

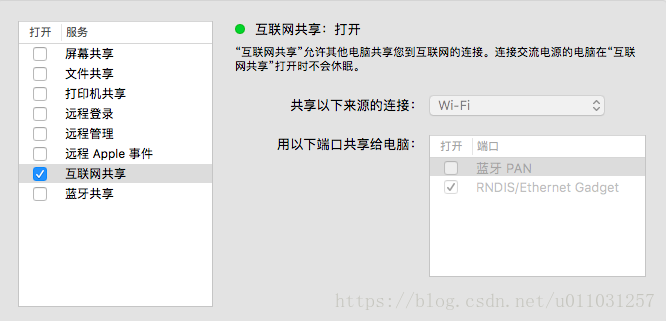

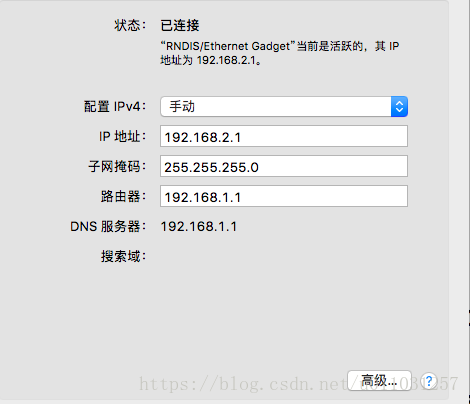

这里我们设置的是一个2的网段，树莓派主机的ip为192.168.2.2。当树莓派通过usb连接到电脑上时我们可以在Mac的网络设置中看到一个RNDIS/Ethernet Gadget的网卡我们设置其参数为这里写图片描述
注意这里的ip为192.168.2.1相当于小型局域网中的网关主机，此处也确实如此，树莓派以此ip为网关。此时直接reboot树莓派，有很多人使用
